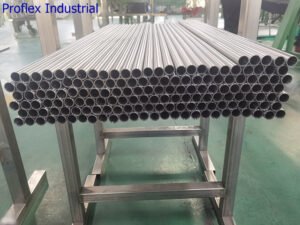

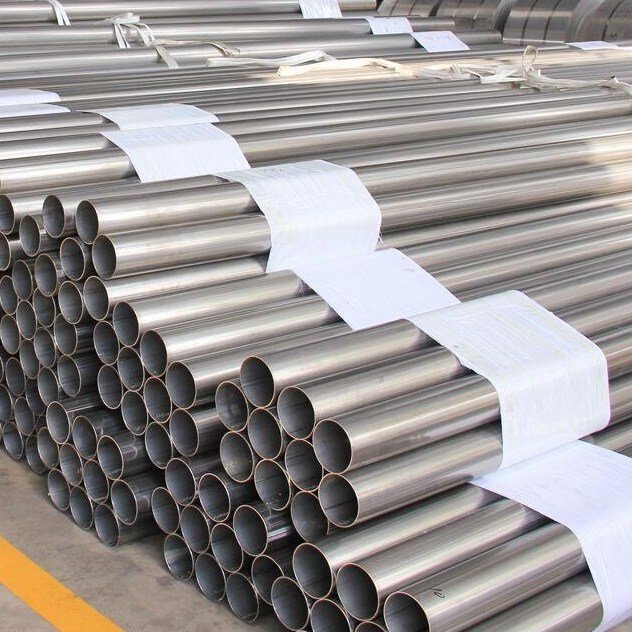

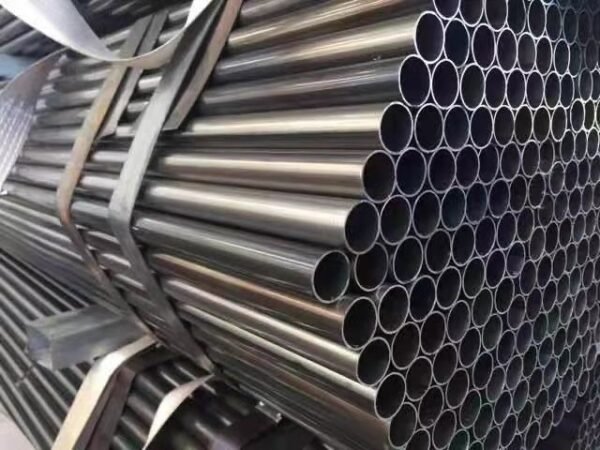

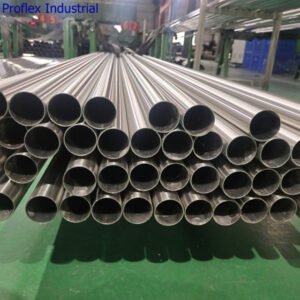

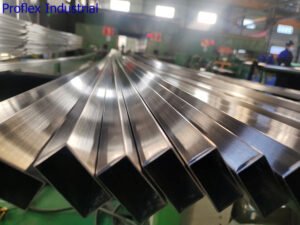

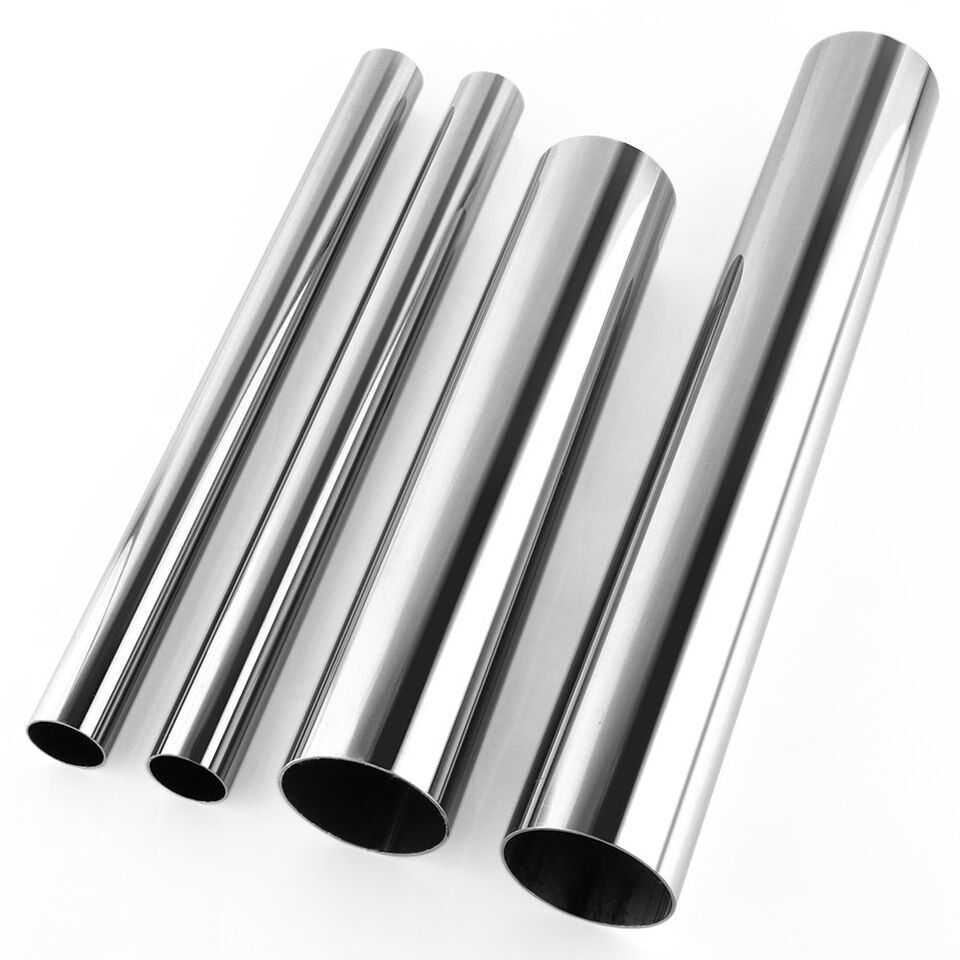

| Items | Stainless Steel Tube Pipe |
|---|---|
| Grade | 201, 304, 309, 316, 316L, 316LM, 403, 409, 430, 439 |
| Standard | JIS, AISI, ASTM, DIN, TUV,BV,SUS,etc |
| Thickness | 0.1 - 50mm |
| Length | 3000mm,5800mm, 5850mm, 6000mm,12000mm,or as required. |
| Finish | 2B, BA, No.4, 8k, Brushed |
| Surface Treatment | Cold Rolled, Polished, Pickled, Anealed, Hot Rolled |
| Nominal pipe size(NPS) [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1/8 inches | 0.405 inches | 10.3 MM | 0.068 inches | 1.73 MM | 0.24 lb/ft | 0.37 kg/m |
| 1/4 inches | 0.540 inches | 13.7 MM | 0.088 inches | 2.24 MM | 0.42 lb/ft | 0.84 kg/m |
| 1/2 inches | 0.840 inches | 21.3 MM | 0.109 inches | 2.77 MM | 0.85 lb/ft | 1.27 kg/m |
| 3/4 inches | 1.050 inches | 26.7 MM | 0.113 inches | 2.87 MM | 1.13 lb/ft | 1.69 kg/m |
| 1 inches | 1.315 inches | 33.4 MM | 0.133 inches | 3.38 MM | 1.68 lb/ft | 2.50 kg/m |
| 1 1/4 inches | 1.660 inches | 42.2 MM | 0.140 inches | 3.56 MM | 2.27 lb/ft | 3.39 kg/m |
| 1 1/2 inches | 1.900 inches | 48.3 MM | 0.145 inches | 3.68 MM | 2.72 lb/ft | 4.05 kg/m |
| 2 inches | 2.375 inches | 60.3 MM | 0.154 inches | 3.91 MM | 3.65 lb/ft | 5.44 kg/m |
| 2 1/2 inches | 2.875 inches | 73.0 MM | 0.203 inches | 5.16 MM | 5.79 lb/ft | 8.63 kg/m |
| 3 inches | 3.500 inches | 88.9 MM | 0.216 inches | 5.49 MM | 7.58 lb/ft | 11.29 kg/m |
| 3 1/2 inches | 4.000 inches | 101.6 MM | 0.226 inches | 5.74 MM | 9.11 lb/ft | 13.57 kg/m |
| 4 inches | 4.500 inches | 114.3 MM | 0.237 inches | 6.02 MM | 10.79 lb/ft | 16.07 kg/m |
| 5 inches | 5.563 inches | 141.3 MM | 0.258 inches | 6.55 MM | 14.62 lb/ft | 21.77 kg/m |
| 6 inches | 6.625 inches | 168.3 MM | 0.280 inches | 7.11 MM | 18.97 lb/ft | 28.26 kg/m |
| 8 inches | 8.625 inches | 219.1 MM | 0.322 inches | 8.18 MM | 28.55 lb/ft | 42.55 kg/m |
| 10 inches | 10.750 inches | 273.0 MM | 0.365 inches | 9.27 MM | 40.48 lb/ft | 60.31 kg/m |
| 12 inches | 12.750 inches | 323.8 MM | 0.406 inches | 10.31 MM | 53.52 lb/ft | 79.73 kg/m |
| 14 inches | 14 inches | 355.6 MM | 0.375 inches | 11.13 MM | 54.57 lb/ft | 94.55 kg/m |
| 16 inches | 16 inches | 406.4 MM | 0.500 inches | 12.70 MM | 82.77 lb/ft | 123.30 kg/m |
| 18 inches | 18 inches | 457.0 MM | 0.562 inches | 14.27 MM | 104.67 lb/ft | 155.80 kg/m |
| 20 inches | 20 inches | 508.0 MM | 0.594 inches | 15.09 MM | 123.11 lb/ft | 183.42 kg/m |
| 24 inches | 24 inches | 610.0 MM | 0.688 inches | 17.48 MM | 171.29 lb/ft | 255.41 kg/m |
| 32 inches | 32 inches | 813.0 MM | 0.688 inches | 17.48 MM | 230.08 lb/ft | 342.91 kg/m |
201 and 304 stainless steel is most popular grade.
201 stainless steel is equivalent to below steel grade:
201 stainless steel chemical composition:
| Composition | C Carbon | Mn Manganese | P Phosphorus | S Sulfur | Si Silicon | Cr Chromium | Ni Nickel | N Nitrogen | Mo Molybdemum | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Content | 0.15 | 5.50-7.50 | 0.06 | 0.03 | 1 | 16.00-18.00 | 3.50-5.50 | 0.25 | - | - |
